ULTIMATE series A6 모노엠프입니다...
몇안되는진정한 모노엠프로
브랜드. 그래이드. 만듬새 등등 서브우퍼에게는 더없이 좋은아이템일것입니다

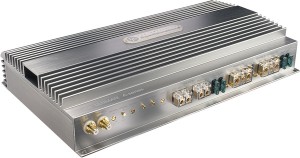

Ultimate Series Monoblock Class A/B Car Amplifier
RMS Power Rating (13.8V):
- 4 ohms: 500 watts x 1 chan.
- 2 ohms: 870 watts x 1 chan.
- 1 ohm: 1200 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Mono channel operation
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heatsink with cooling fan for extreme heat dissipation
Built-in external fan control module for external cooling fan
Dual gold-plated DC power terminals
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
Variable low-pass filter (50-125 Hz, 24 dB/octave)
Subsonic filter (25 dB, 18 dB/octave)
Phase Shift: 0-180°
Damping factor: >200
Frequency response: 10-125 Hz
Dimensions: 9-7/16"L x 16-3/16"W x 2-7/8"H
4-gauge power and ground wiring is required for installation
